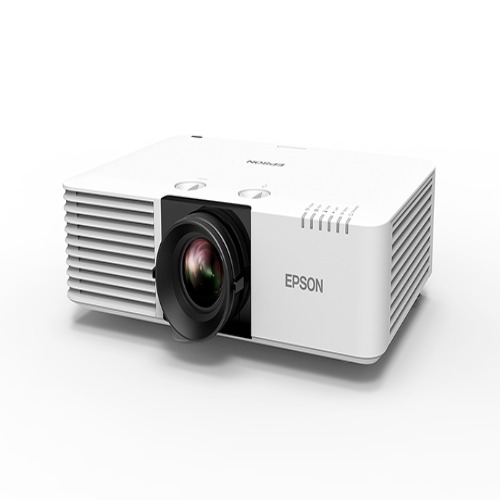

Epson EB-L530U

Price 165000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Epson EB-L530U Specification

Illumination
Laser light source

Accuracy
High image fidelity

Working Area
Large conference rooms, lecture halls

Type
3LCD Laser Projector

Use
Education, Large Venue

Portable
Yes

Brightness
5200 lumens

Resolution
WUXGA (1920 x 1200)

Projection Distance
1.44 m - 8.69 m

Lamp
Laser Diode

Lens
Manual zoom and focus

Contrast Ratio
2,500,000:1

Pictures Size
50 to 500

Keystone
Vertical: 30, Horizontal: 30

Power
Approx. 357W (Normal mode)

Voltage
100 - 240 V AC, 50/60 Hz

Wireless Support
Optional

Weight
Approx. 8.5 kg

Installation Flexibility
360-degree projection capability

Network Connectivity
RJ-45, Wireless LAN optional

Dimensions
440 x 304 x 120 mm (W x D x H)

Noise Level
38 dB (Normal), 27 dB (Eco)

Speakers
10 W Mono

Input Terminals
HDMI x2, D-Sub 15pin, Stereo mini-jack, USB 2.0 Type A/B

Aspect Ratio
16:10

About Epson EB-L530U

Up to 5,200 lumens of equal Colour and White Brightness¹
Full HD WUXGA support; accepts 4K signal
Virtually maintenance-free 20,000-hour laser light source³
Display from 127 cm (50 inch) to 1,270 cm (500 inch) diagonal (16:10) or ultra-wide (16:6)
Built-in tools for simplified installation

Advanced Imaging for Large Venues

Epson EB-L530U brings high-fidelity image quality and exceptional brightness to large conference rooms and lecture halls. With WUXGA resolution and 5200 lumens, it ensures vivid projections even in well-lit spaces. The projector supports a wide image size range from 50 to 500 inches, making it suitable for diverse audience sizes and room layouts.

Flexible Installation and Connectivity

Offering 360-degree projection capability and 30 keystone correction, the EB-L530U can be installed in a variety of positions and angles. Its array of input terminals-including dual HDMI, D-Sub 15pin, and USB-combined with optional wireless LAN, make it easy to connect to multiple devices, ensuring a seamless setup process.

Durable, Efficient, and User-Friendly

Equipped with a robust laser diode and consuming approximately 357W in normal mode, this projector is designed for long-lasting, energy-efficient operation. Quiet performance (down to 27 dB in Eco mode) and an inbuilt 10 W speaker enhance usability, meeting the needs of both educational and professional environments.

FAQ's of Epson EB-L530U:

Q: How do I set up and install the Epson EB-L530U in a large venue?

A: The Epson EB-L530U is designed for easy, flexible installation. It supports 360-degree projection and offers vertical and horizontal keystone correction (30), enabling you to mount it in various orientations. Simply connect your input sources (HDMI, D-Sub, USB) and configure projection settings via the user-friendly interface. Its size and portability (approx. 8.5 kg) facilitate manageable installation in large rooms.

Q: What connectivity options are available on the Epson EB-L530U?

A: The projector features a wide range of input terminals, including two HDMI ports, D-Sub 15pin for VGA input, stereo mini-jack, and USB 2.0 Type A/B ports. It also provides RJ-45 for wired network connectivity and offers optional wireless LAN support for cable-free connections to compatible devices.

Q: When should I choose the EB-L530U for my application?

A: The EB-L530U is ideal for environments that require high-brightness, detailed images across large display areas-such as conference rooms, lecture halls, and educational facilities. Its laser diode light source and WUXGA resolution ensure reliable, consistent performance over extended periods, making it a smart choice for frequent use.

Q: Where can I use the Epson EB-L530U most effectively?

A: This projector excels in large spaces where image clarity, size flexibility, and sound output are needed. Typical settings include universities, corporate training centers, auditoriums, and other large venues that demand powerful, dependable projection solutions.

Q: What is the process for connecting the projector to the network or enabling wireless projection?

A: The EB-L530U includes an RJ-45 port for wired network installations, allowing for remote management and network-based presentations. For wireless projection, an optional wireless LAN module can be added, enabling easy, cable-free presentations from laptops and mobile devices.

Q: How does the Epson EB-L530U benefit educational or professional presentations?

A: With its high image brightness, extensive installation flexibility, and precise color reproduction, the EB-L530U enhances audience engagement and communication. The large projection size range, powerful built-in speaker, and low operational noise contribute to a professional and immersive presentation experience.
